Station

A Station can be any Node, representing a network entity capable to accommodate

• a connection either with a pipe and/or
• a connection with pipe fittings and accessories (i.e Components).

A Station is a special collection of network data. The simplest contained data entity is called “ a node”. The nodes depending on the type of information they carry are categorized as

1. Topological nodes
2. Device nodes or Components

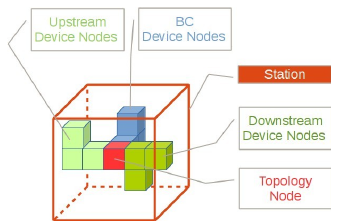

A station includes one topology node (red cube) and any number of device nodes required to describe local characteristics and features as well as boundary conditions (BC).

---
