Drainage Valve

Intro


How to reach here

Edit Component

Edit Branch

Network Components Edit Component

Display Stations Info

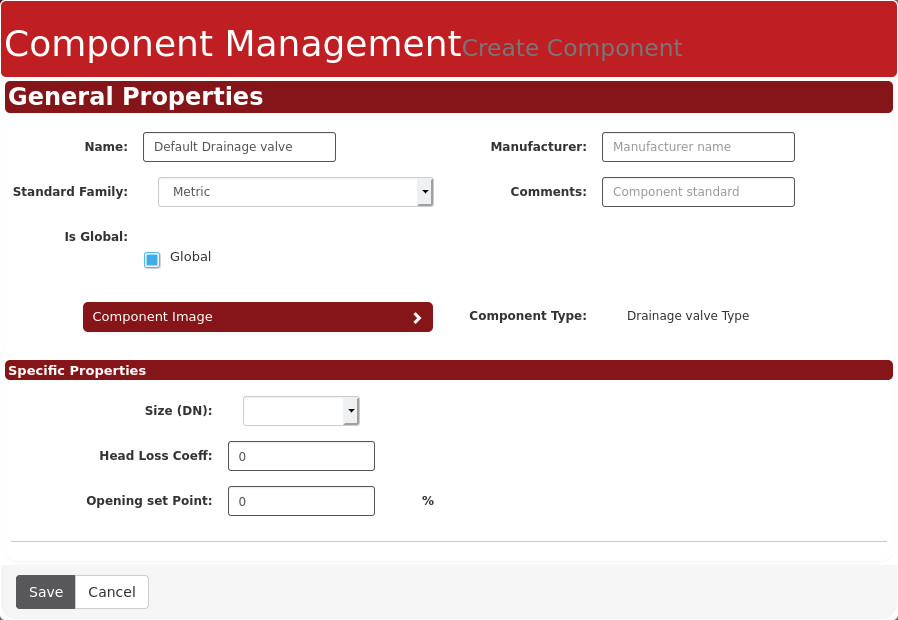

Screen Overview

General Properties

Contains fields of informative character.
Enter the descriptions suitable to easily recognize and re-use the component

  1. Name:
  2. Manufacturer:
  3. Standard Family:
  4. Comments:
  5. Is Global:
  6. Bookmarked:
  7. Image

Specific Properties

  1. Size (DN):
By default is taken equal to relevant pipe diameter.
  1. Head loss coef: By default is taken equal to 0.6
  2. Opening Set Point: 100% (Variable opening is kept for future use)

Final Steps

1. Save: to keep changes
2. Cancel:to leave
