PRV

How to reach here

Edit Component

Edit Branch

Network Components Edit Component

Display Stations Info

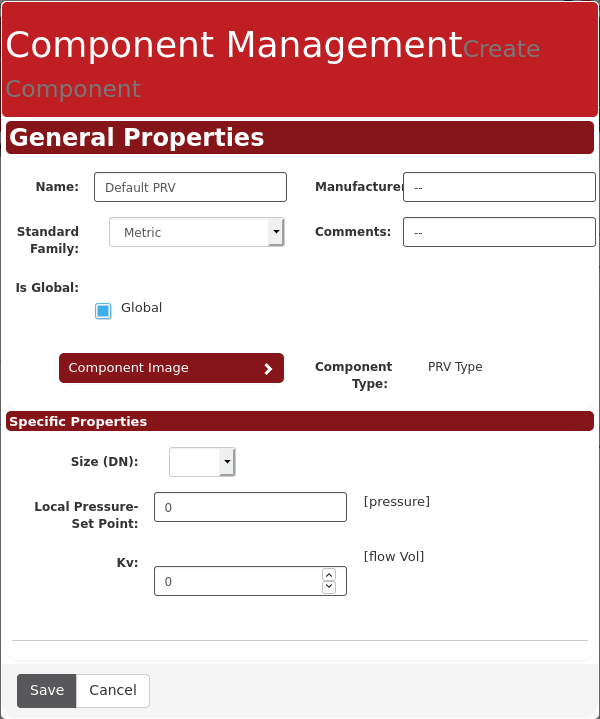

Screen Overview

Options From Here


General Properties

Contains fields of informative character.
Enter the descriptions suitable to easily recognize and re-use the component

  1. Name:
  2. Manufacturer:
  3. Standard Family:
  4. Comments:
  5. Is Global:
  6. Bookmarked:
  7. Image

Specific Properties

  1. Size DN (Optional for future use)
  2. Set the local Pressure at PRVs outlet (Required)
  3. Set the valve's kv (Optional for future use)

Final Steps

1. Save: to keep changes
2. Cancel:to leave

Additional Information
